Product Code : 002

Product Description

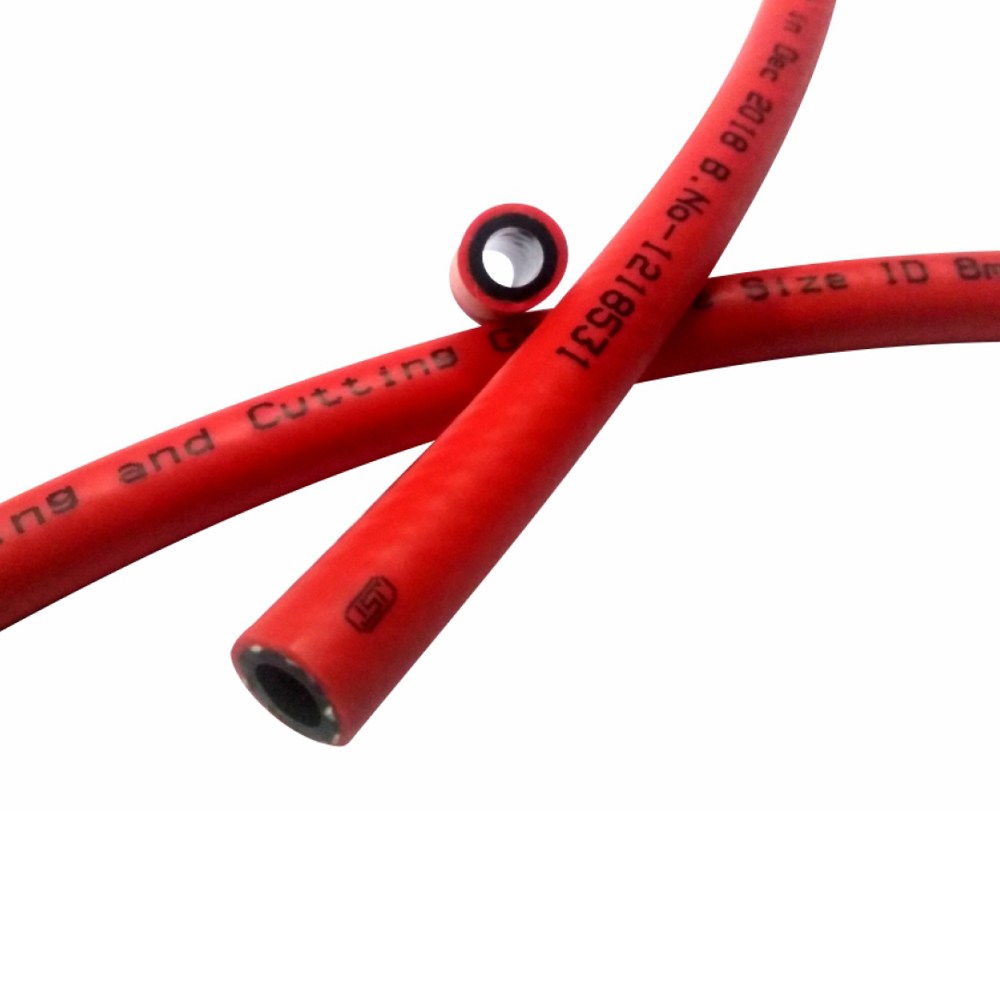

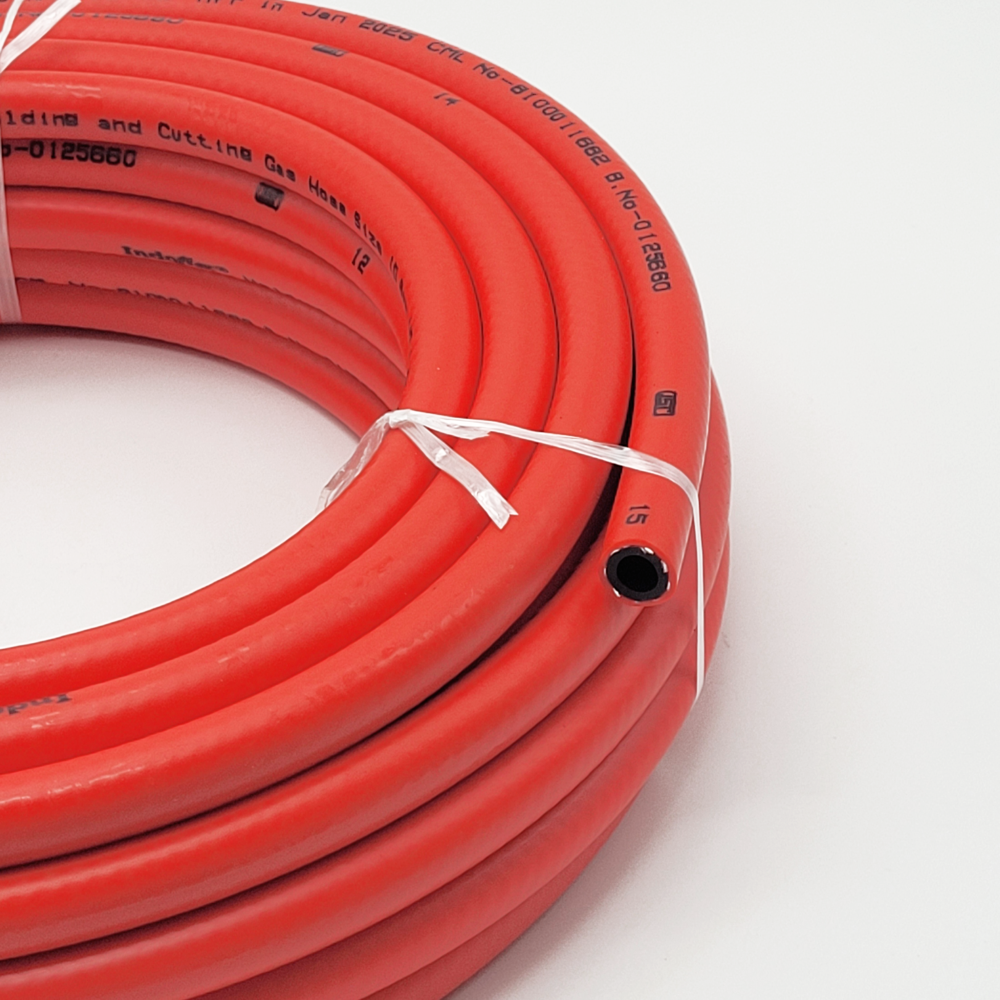

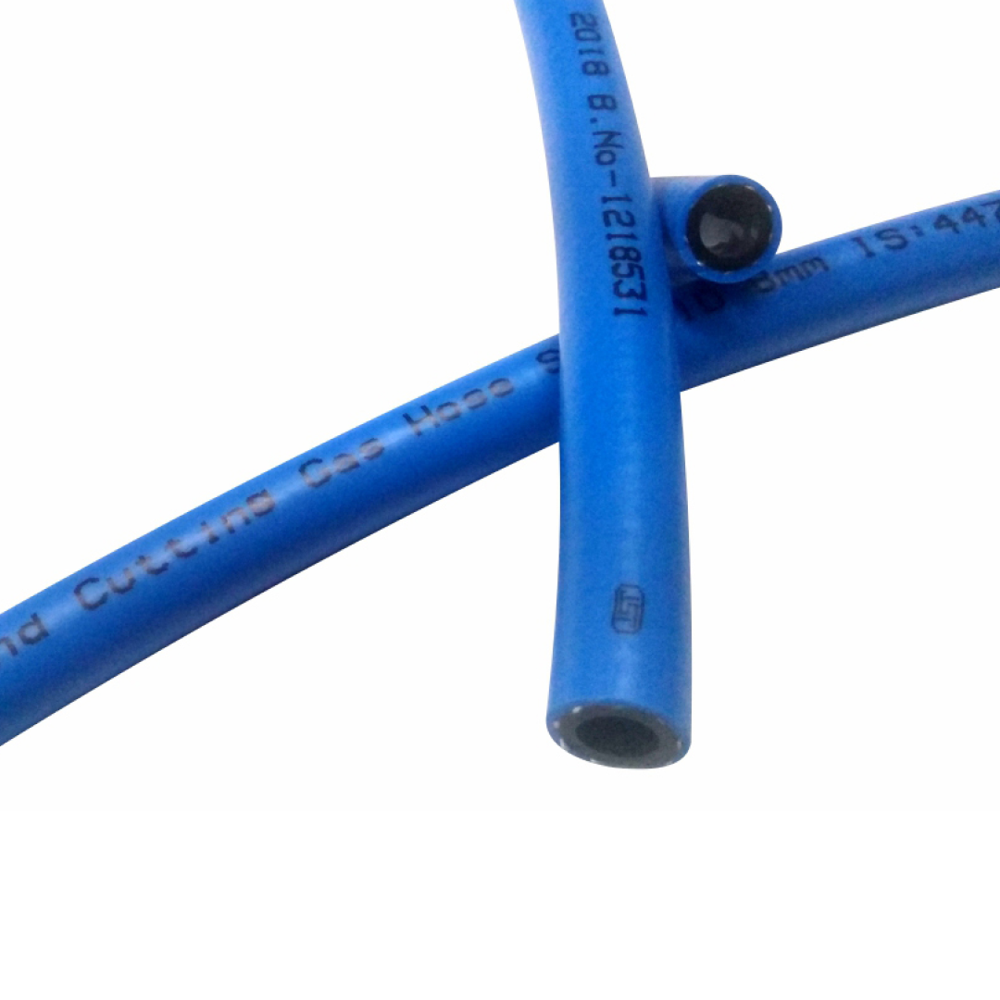

Rubber Welding Hose

Available with us is an excellent quality range of Rubber Welding Hose for our clients. Our company is manufacturing vast array of welding hoses in order to meet the rising demands of the market as well as clients. These welding hoses are widely used in gas welding and cutting, pneumatic hose and gas welding hose or any type of gas flow. Rubber Welding Hose is available in different specifications for multiple usages in various areas.

Specifications:

Working Pressure : 25-30 kgf/cm²
Burst Pressure : 65-75 kgf/cm²
Temperature Range : -5ºC to 55ºC

Material of Construction:

Synthetic Rubber blended with polymers and Plasticizers
Reinforced with high strength Synthetic Yarn

Physical & Mechanical Properties:

Flame Retardant
Hydrocarbon and Oil resistant
High Flexibility and Elastomer Properties
Filler free and long lasting Durability
RED and BLUE or Black colours

Specifications:

Working Pressure	Proof Pressure	Min. Busting Pressure	Working Temperature Range	Deforming Temp	Brittleness Temp	Min. Bending Radius
25 kg/cm²	35 kg/cm²	100 kg/cm²	minus 10°C to 90° C	150°C	minus 80°C	At 4 Times the Nominal Diameter cross section does not collapse.

Technical Specifications:

Item Code	Item Name	ID	OD	Wall	WP/BP
		mm	mm	mm	kg/cm²
447Z01	5 mm HP Gas Hose	5	11	3	25\100
447Z02	6 mm HP Gas Hose	6.3	13	3.35	25\100
447Z03	8 mm HP Gas Hose	8	16	4	25\100
447Z04	10 mm HP Gas Hose	10	18	4	25\100
447Z05	12 mm HP Gas Hose	12.5	21	4.25	25\100
