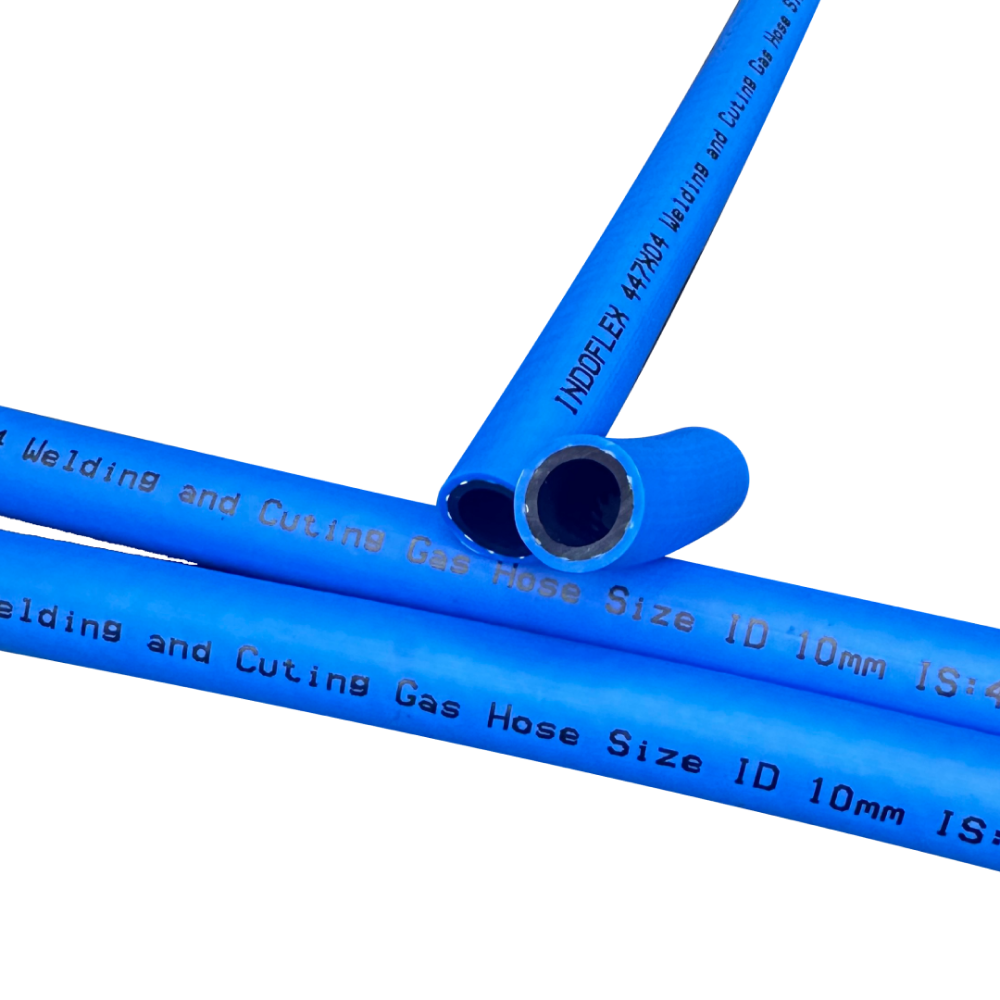

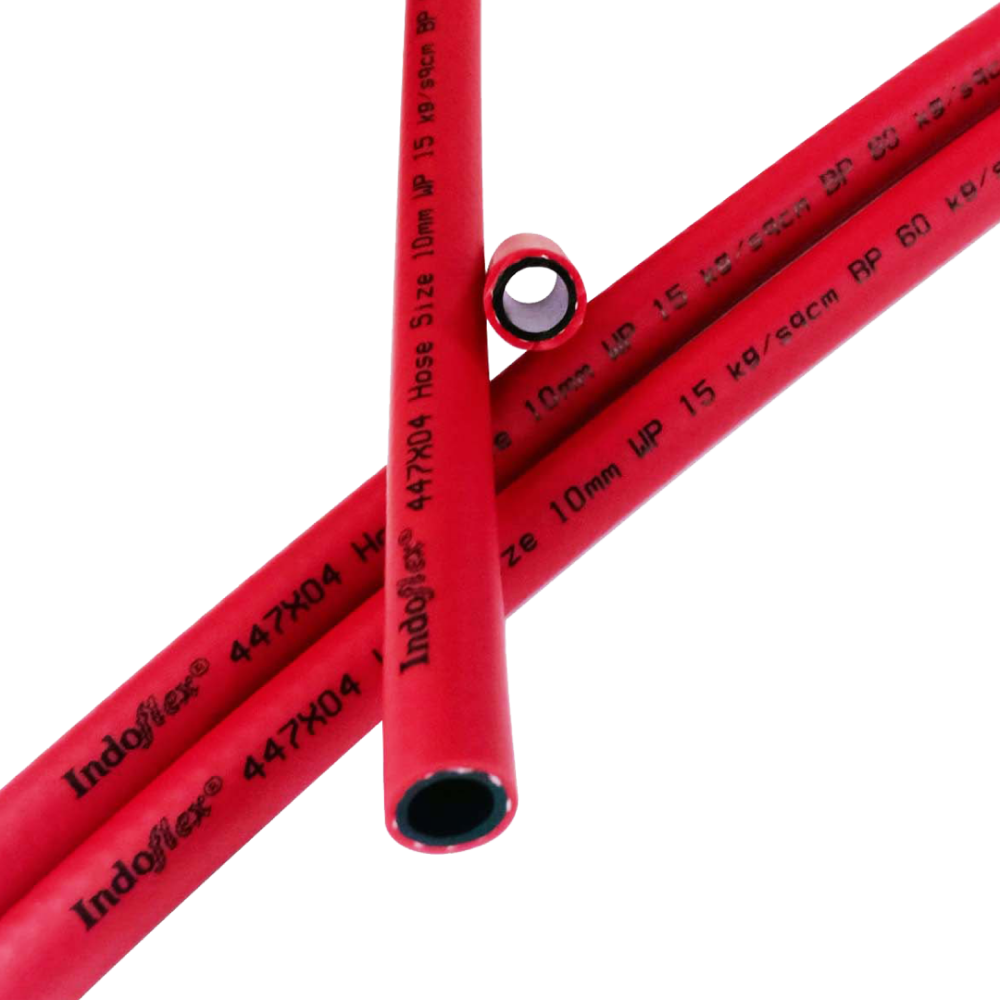

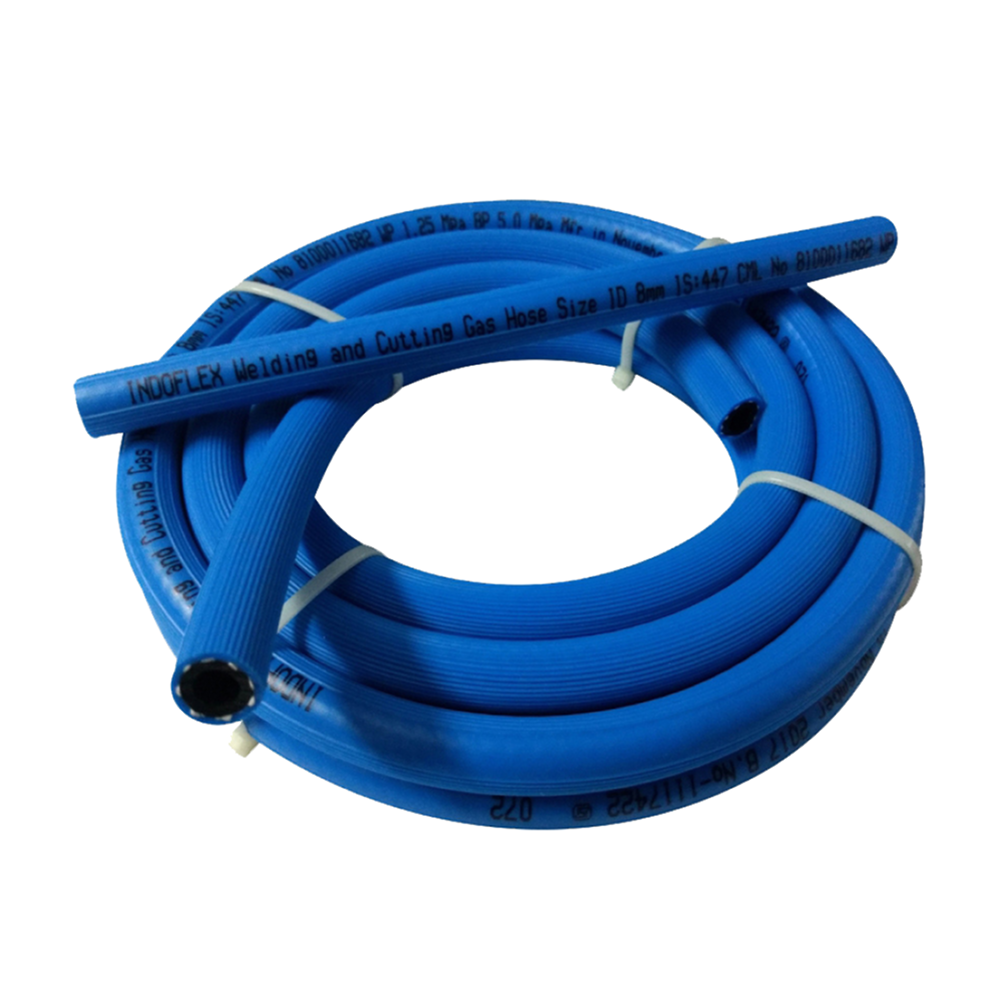

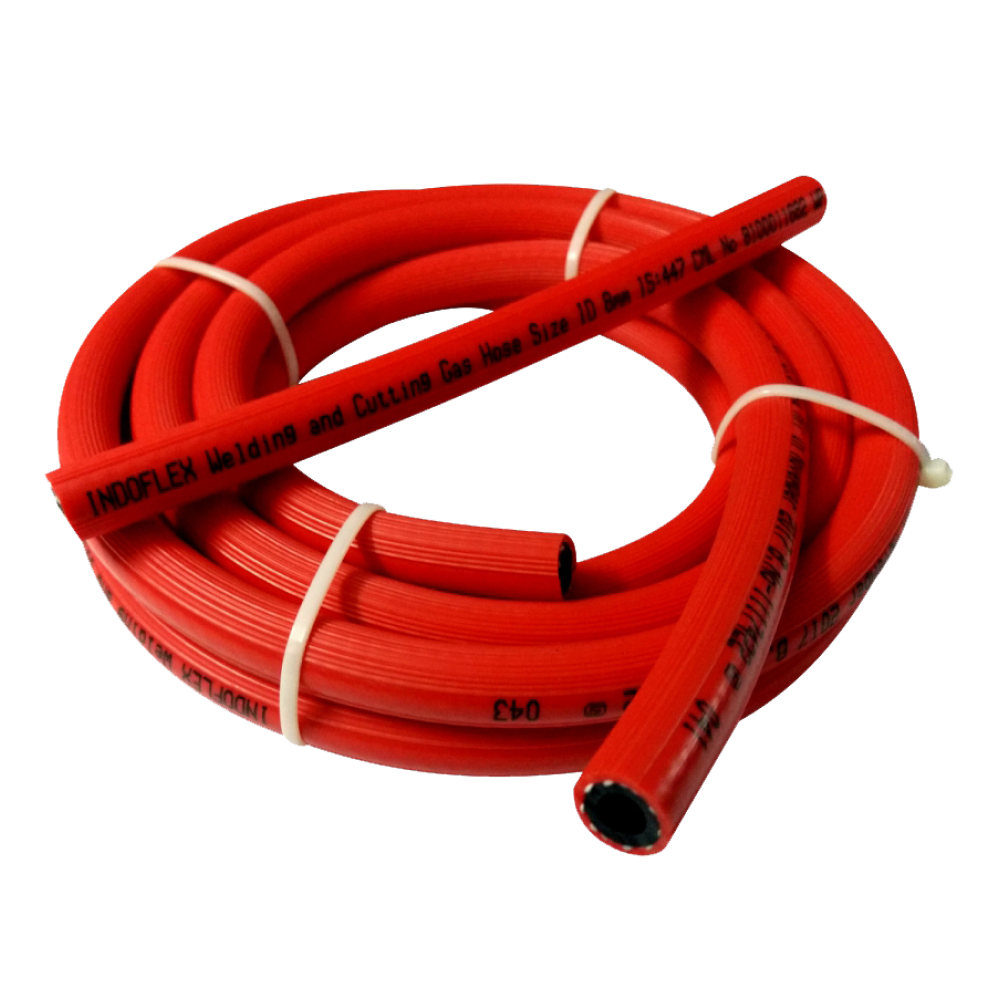

Thermoplastic Rubber Welding Hose

Thermoplastic Rubber Welding Hose
Thermoplastic Rubber Welding Hose
Send Inquiry
Product Code : 100
Product Description
Thermoplastic Rubber Welding Hose

Major uses :
  • Gas welding Hose
  • Pneumatic Hose
  • Gas Welding and Cutting , employing Oxygen, LPG , Acetylene, other Fuel Gases. Any type of Gas or air flow.
Specification
  • Working Pressure : 25-30 kgf/cm²
  • Burst Pressure : 65-75 kgf/cm²
  • Temperature Range : -5ºC to 55ºC

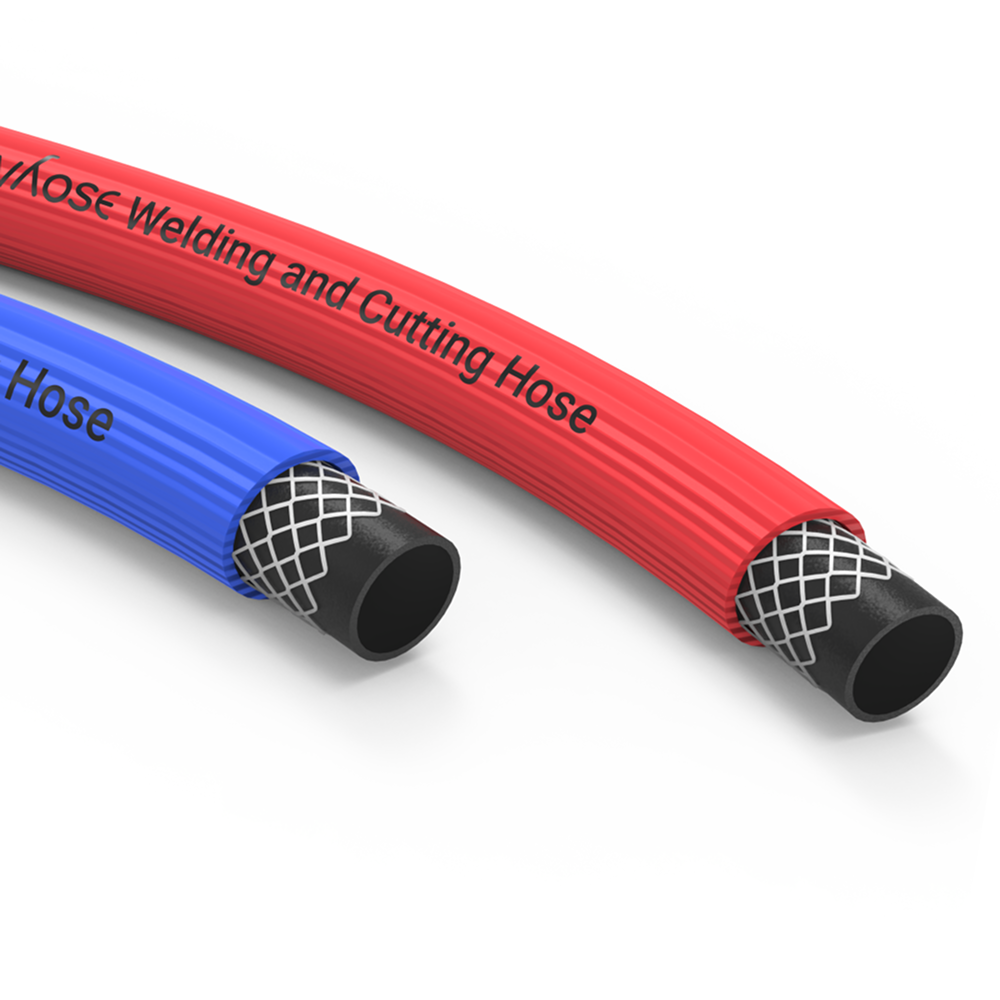

Material of Construction:
  • Synthetic Rubber blended with polymers and Plasticizers
  • Reinforced with high strength Synthetic Yarn
Physical & Mechanical Properties:
  • Flame Retardant
  • Hydrocarbon and Oil resistant
  • High Flexibility and Elastomer Properties
  • Filler free and long lasting Durability
  • RED and BLUE or Black colours

I.D mm

O.D mm

WP kgf/cm²

BP kgf/cm²

8

14.5

25

70

6

12.5

30

80

10

19

20

60

Brand: Indoflex Welding Hoses

Why use Indoflex Welding Hoses:

  • Superior to Rubber hoses as his Filler free
  • Retains flexibility at sub ambient to high temperatures
  • Light weight so easy handling
  • Smooth inner and outer surface finish
  • Withstands high working pressure after repeated use.

Specifications:


Working Pressure

Proof Pressure

Min. Busting Pressure

Working Temperature Range

Deforming Temp

Brittleness Temp

Min. Bending Radius

25
kg/cm²

35
kg/cm²

100
kg/cm²

minus 10°C to 90° C

150°C

minus 80°C

At 4 Times the Nominal Diameter cross section does not collapse.


Technical Specifications:

Item Code

Item Name

ID

OD

Wall

WP/BP



mm

mm

mm

kg/cm²

447Z01

5 mm HP Gas Hose

5

11

3

25\100

447Z02

6 mm HP Gas Hose

6.3

13

3.35

25\100

447Z03

8 mm HP Gas Hose

8

16

4

25\100

447Z04

10 mm HP Gas Hose

10

18

4

25\100

447Z05

12 mm HP Gas Hose

12.5

21

4.25

25\100
